Surging problem on a brand new Briggs and Stratten 10HP XR
Hello, I have a brand new piece of machinery that I purchased from "overseas". It came with a Briggs and Stratton 10HP 306cc engine. I think this engine was not really intended for the US market, even though all of the labels are in English. The engine number is something Briggs doesn't recognize (19N1370348F1). Fake knockoff? The emissions stickers passed US customs, though. The engine runs okay at wide open throttle, but as I throttle it down, it surges badly. Closing the choke about half way makes it smooth out. So, as I understand it, it is running very lean. Since it runs at wide open throttle, I'm guessing that it is a pilot jet issue? We are at about 4500ft elevation, so it should be rich, not lean. Can this be adjusted? I understand that modern engines don't have adjustments any more. Do I need to drill out the pilot jet? Briggs doesn't list a pilot jet as an orderable part, so if I mess it up, I have to buy a whole carb to replace it. The engine only turns a hydraulic pump (the whole machine is hydraulicly powered), so I just run it at full throttle all of the time anyway. It would be nice to be able to throttle it down sometimes, but if I throttle down very much, the engine dies. Any help or ideas would be greatly appreciated.
|
Thesmallenginehobbyist76
Super Member
- Total Posts : 62
- Scores: 0
- Reward points: 0
- Joined: 2024/02/26 09:59:32
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/01 16:57:02
(permalink)
I agree that you might not want to drill out the jet unless you have lots of experience which maybe you do but I drilled a jet one time and ended up drilling it too much. I had a pressure washer that surged and i just had to try a few springs to make the governor smooth out. Good Luck
|
SRTsFZ6
Super Member
- Total Posts : 2055
- Scores: 74
- Reward points: 0
- Joined: 2018/11/18 07:20:58
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/01 16:57:49
(permalink)
I agree, it's jetted too lean... Partially choking it proves that or the carb is clogged (which shouldn't be, being it's new). As we can't look up the carb on-line, can you take and post a couple of pictures of it? .
|
SRTsFZ6
Super Member
- Total Posts : 2055
- Scores: 74
- Reward points: 0
- Joined: 2018/11/18 07:20:58
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/01 17:16:05
(permalink)
|
bcunningham
New Member
- Total Posts : 5
- Scores: 0
- Reward points: 0
- Joined: 2024/03/01 15:01:33
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/04 14:23:27
(permalink)
Thanks everyone for the help. I actually do have an extra main jet (I stupidly thought it needed the high-altitude jet installed - it made it worse, of course). I have a set of very small drill bits on order. Once they arrive, I will try drilling the main jet a little at a time, and see how it goes. It does seem to be the 592594 carburetor, or at least the jets for the 592594 fit in this carb. So, does this carb not have an idle jet? Is it possible that this engine was not meant to be able to idle? I know that the engines on generators are often set up to never idle.
|
SRTsFZ6
Super Member
- Total Posts : 2055
- Scores: 74
- Reward points: 0
- Joined: 2018/11/18 07:20:58
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/04 14:35:37
(permalink)
Does it have an idle stop screw? If so, it'd have a spring under it keeping tension on the screw for adjustment (Part #98 is an "Idle kit" https://www.jackssmallengines.com/jacks-parts-lookup/part/briggs-stratton/495800 . And you are correct about the generators which are 3,600 RPMs or OFF. There is no adjustable throttle on those. Dos you machine have a throttle on it(for the operator to adjust while "under way")? .
|
SRTsFZ6
Super Member
- Total Posts : 2055
- Scores: 74
- Reward points: 0
- Joined: 2018/11/18 07:20:58
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/04 14:43:22
(permalink)
Your first post, you state you can "throttle down". That sounds like the RPMs are indeed adjustable. Just an FYI, I have three 10 HP Briggs engines on generators. Again, you cannot adjust the RPMs down, it's 3,600 or off however I can hold the actual throttle down (there is no throttle stop screw) and the engine WILL run at low RPMs. I'll do this on shut down so the engine isn't sucking fuel into it when turning off from 3,600 RPMs. .
|
SRTsFZ6
Super Member
- Total Posts : 2055
- Scores: 74
- Reward points: 0
- Joined: 2018/11/18 07:20:58
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/04 14:43:47
(permalink)

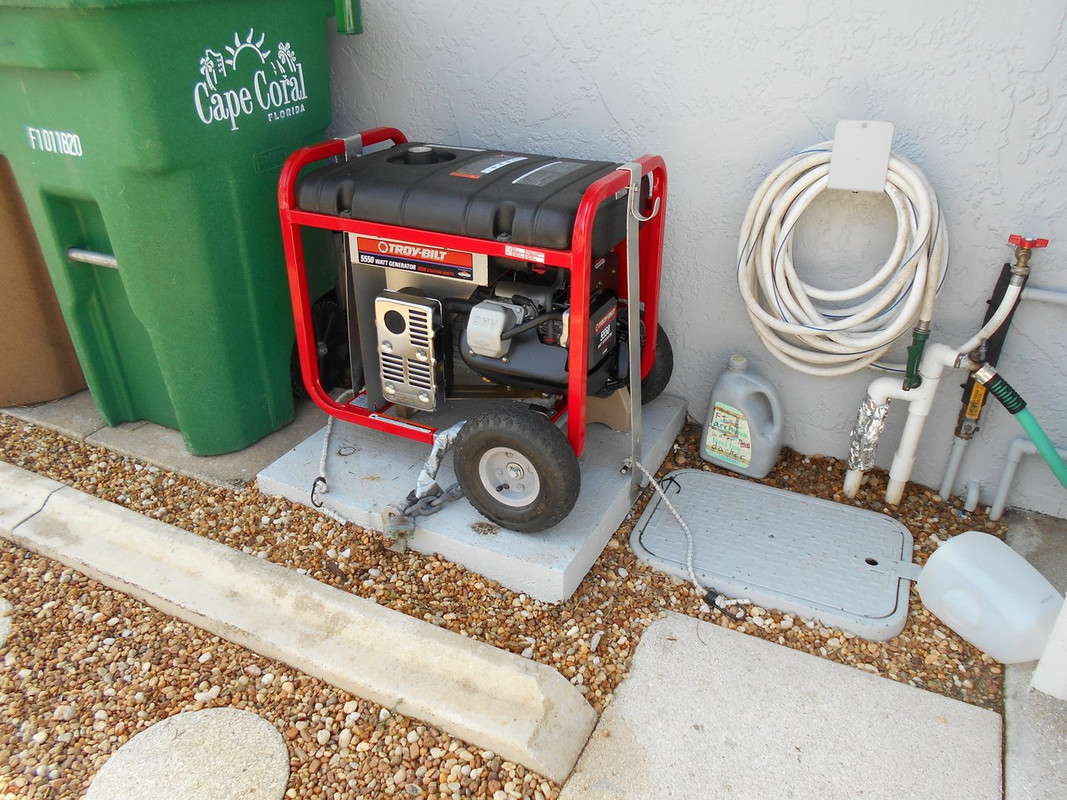

One unit:
|
bcunningham
New Member
- Total Posts : 5
- Scores: 0
- Reward points: 0
- Joined: 2024/03/01 15:01:33
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/04 14:49:03
(permalink)
Thanks again for the help. Yes, it does have a throttle lever that sits right next to the hydraulic levers (red handle in the attached picture). It operates via a cable down to the engine.
Attached Image(s)
|
bcunningham
New Member
- Total Posts : 5
- Scores: 0
- Reward points: 0
- Joined: 2024/03/01 15:01:33
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/04 14:57:01
(permalink)
If I throttle down just a little bit, the engine starts surging, and then if I go down a little more, it dies.
|
SRTsFZ6
Super Member
- Total Posts : 2055
- Scores: 74
- Reward points: 0
- Joined: 2018/11/18 07:20:58
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/04 16:06:37
(permalink)
It shouldn't do that. You should be able to bring the speed way down if not to a good, steady idle...
|
bcunningham
New Member
- Total Posts : 5
- Scores: 0
- Reward points: 0
- Joined: 2024/03/01 15:01:33
- Status: offline
Re: Surging problem on a brand new Briggs and Stratten 10HP XR
2024/03/04 17:48:21
(permalink)
Once I get the drill bits, I will try opening up the main jet, and see what happens. Thanks for all of the help.
|
