Electrical problem with Timecutter 42"

Hello All.
My Toro  74360 serial 290011235 mower has a weird problem. I hugged a tree a little close on the left side at the rear wheel  and the mower instantly died. After a couple of tries to restart it turned out the main 30 amp fuse was blown. After replacing it the mower would start and run but as soon as I try to put on the blades or move the levers off the resting position the mower dies. I need to know the wiring to be able to figure out what is happening. If anyone has heard of this i would love to know what it is, or if anyone has a wiring diagram for my particular mower that would be great. Thanks!
Quote  #1

2 Replies Related Threads
    SRTsFZ6
    Super Member
    • Total Posts : 2099
    • Scores: 74
    • Reward points: 0
    • Joined: 2018/11/18 07:20:58
    • Status: offline
    Re: Electrical problem with Timecutter 42" 2025/05/01 17:49:23 (permalink)
    0
    I also have an older 2005 Timecutter as well

    You may want to try by passing the seat switch:
    (If 2 wires under the seat, un-plug the switch and run a jumper between them)

    Also:

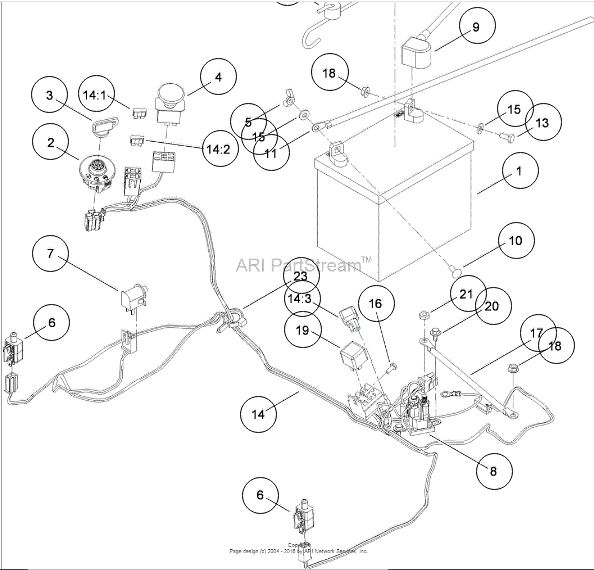

    https://jackssmallengines.com/jacks-parts-lookup/manufacturer/toro/riding-products/74360-timecutter-z4200-riding-mower-2010-sn-310000001-310999999/electrical-assembly

    There's not much wiring to the machine, popping the main fuse is odd, with your circumstance.

    If the seat switch by pass doesn't do anything, follow and check all wires for a short to ground.
    Also, the lever safety switch for each handle are somewhat flimsy.  Make sure both switches are fully seated and the switch is working when the arms are moved..

    Check battery cable connections as well as to the starter relay.  A loose/crappy connection
    could pop the fuse

    .

    Scott
